Azure PostgreSQL Flexible Server - VNet Integration
2024-11-15
VNet Intergration
VNet injection is the VNet integration pattern for services whose architecture is based on dedicated resources that can be deployed (aka “injected”) into the instance owner’s VNet
Subnet
- To deploy above dedicated resources, a delegtion subnet needed.
- To simplify system design and maintenance, psql instances with similar role could be grouped together. Make sure plan your subnet size, as it can not be changed after deployment. From MS document, one psql with HA will use 4 IPs.
Peering
If you need config a async replica for DR, VNet peering needed for these VNet pair.
Intra VNet Access
Within VNet, different subnets could be designed for different roles like application, management and etc. NSGs configured for aceess between these Subnets.
Here simulated psql client access from insider subnet (10.1.2.4) psqladmin@psqlvm-intra:~$ ifconfig -a eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet 10.1.2.4 netmask 255.255.255.0 broadcast 10.1.2.255
Address Resoved via default linked private DNS zone psql-core1.postgres.database.azure.com -> a1b9c61e56fd.psql-core1.private.postgres.database.azure.com -> 10.1.1.4
psqladmin@psqlvm-intra:~$ nslookup psql-core1.postgres.database.azure.com
Server: 127.0.0.53
Address: 127.0.0.53#53
Non-authoritative answer:
psql-core1.postgres.database.azure.com canonical name = a1b9c61e56fd.psql-core1.private.postgres.database.azure.com.
Name: a1b9c61e56fd.psql-core1.private.postgres.database.azure.com
Address: 10.1.1.4
psqladmin@psqlvm-intra:~$ nslookup psql-core1-dr.postgres.database.azure.com
Server: 127.0.0.53
Address: 127.0.0.53#53
Non-authoritative answer:
psql-core1-dr.postgres.database.azure.com canonical name = e2f2dd939144.psql-core1.private.postgres.database.azure.com.
Name: e2f2dd939144.psql-core1.private.postgres.database.azure.com
Address: 10.2.1.4
psqladmin@psqlvm-intra:~$ nslookup psql-core2.postgres.database.azure.com
Server: 127.0.0.53
Address: 127.0.0.53#53
Non-authoritative answer:
psql-core2.postgres.database.azure.com canonical name = b6c43f34036d.psql-core2.private.postgres.database.azure.com.
Name: b6c43f34036d.psql-core2.private.postgres.database.azure.com
Address: 10.1.1.7
Extra VNet Access
Here simulated psql client access from outside subnet (10.3.1.4)
psqladmin@psqlvm-inter:~$ ifconfig -a
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 10.3.1.4 netmask 255.255.255.0 broadcast 10.3.1.255
Default not work as network is not peering. After VNet peering, can access using psql server IP.
psqladmin@psqlvm-inter:~$ psql -h 10.1.1.4 -d postgres
Password for user psqladmin:
psql (12.20 (Ubuntu 12.20-0ubuntu0.20.04.1), server 16.4)
WARNING: psql major version 12, server major version 16.
Some psql features might not work.
SSL connection (protocol: TLSv1.3, cipher: TLS_AES_256_GCM_SHA384, bits: 256, compression: off)
Type "help" for help.
postgres=> \l
DNS name can not be resolved. psqladmin@psqlvm-inter:~$ nslookup psql-core1.postgres.database.azure.com Server: 127.0.0.53 Address: 127.0.0.53#53
** server can't find psql-core1.postgres.database.azure.com: NXDOMAIN

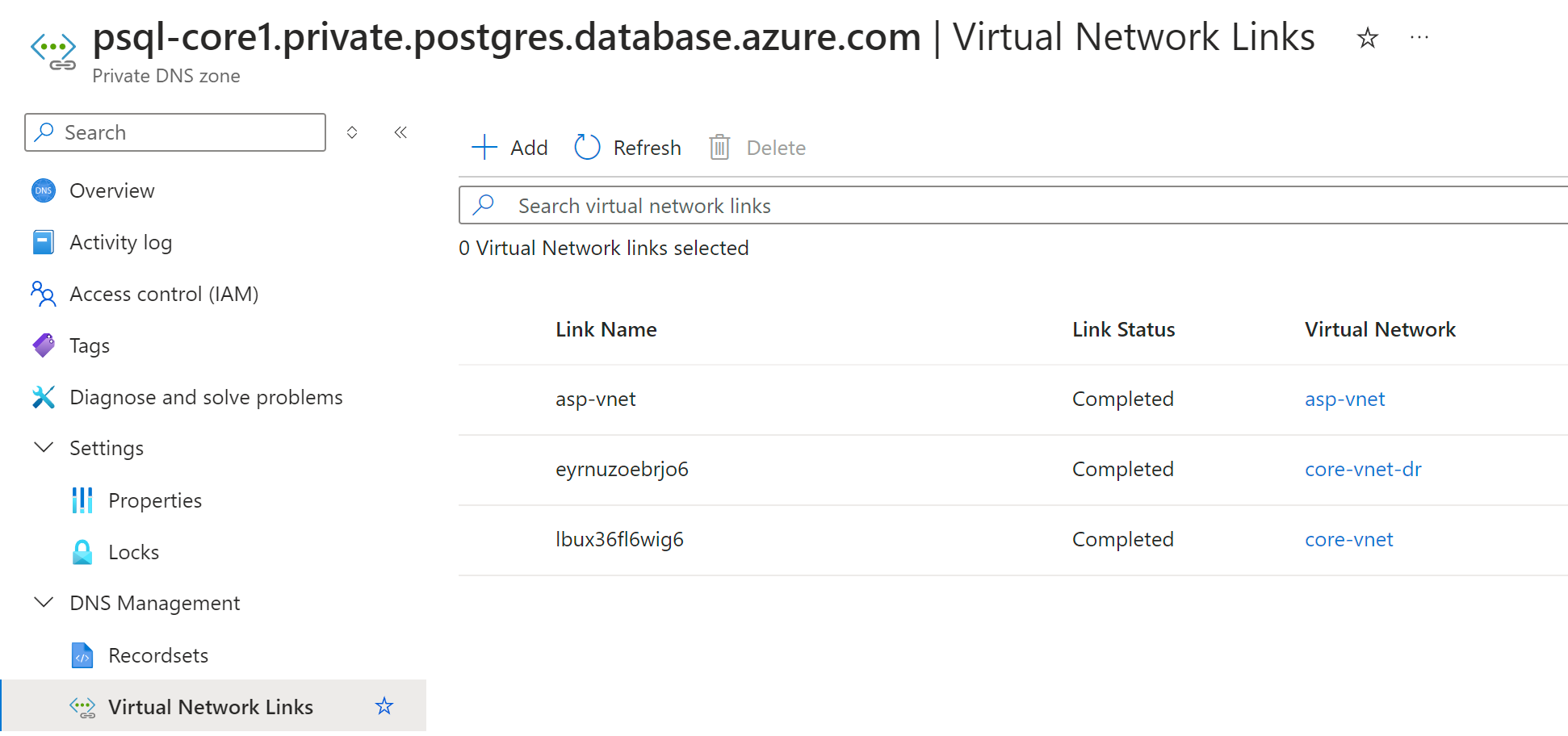

After manually linked private DNS zone with Server, it can be resolved.
psqladmin@psqlvm-inter:~$ nslookup psql-core1.postgres.database.azure.com
Server: 127.0.0.53
Address: 127.0.0.53#53
Non-authoritative answer:
psql-core1.postgres.database.azure.com canonical name = a1b9c61e56fd.psql-core1.private.postgres.database.azure.com.
Name: a1b9c61e56fd.psql-core1.private.postgres.database.azure.com
Address: 10.1.1.4

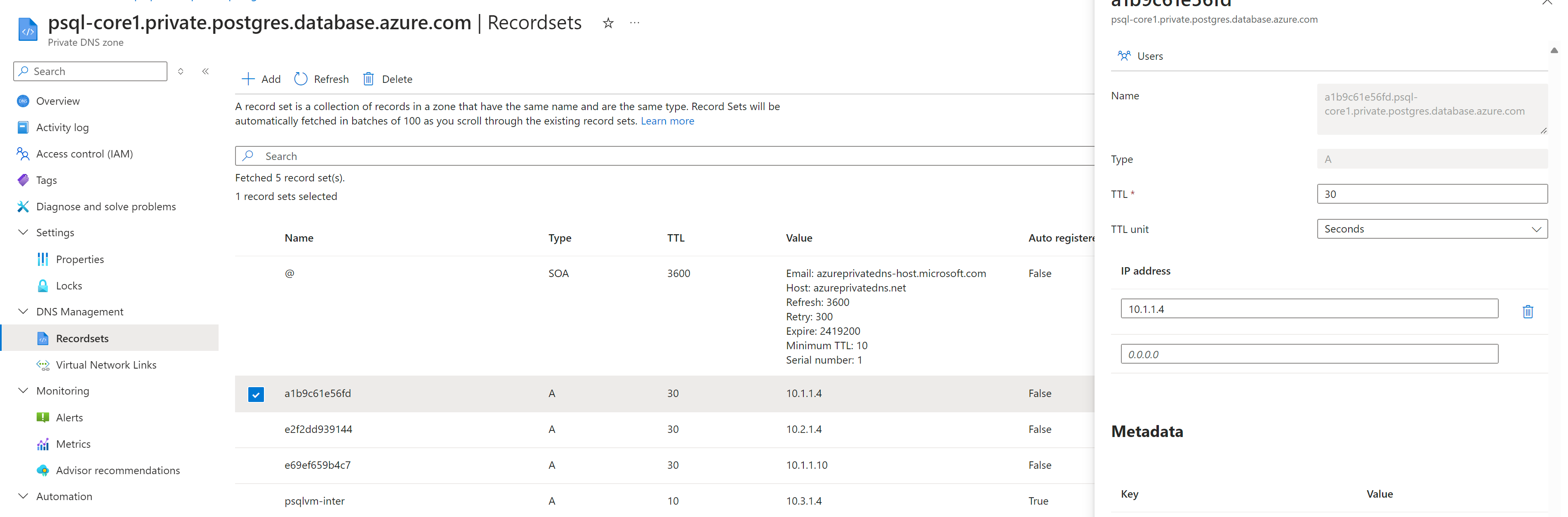

Private DNS Zone
From above inside and outside access testing, private DNS zone are vital for application connections, especially in HA scenario.
HA/DR
HA
psqladmin@psqlvm-inter:~$ nslookup psql-core1.postgres.database.azure.com
Server: 127.0.0.53
Address: 127.0.0.53#53
Non-authoritative answer:
psql-core1.postgres.database.azure.com canonical name = a1b9c61e56fd.psql-core1.private.postgres.database.azure.com.
Name: a1b9c61e56fd.psql-core1.private.postgres.database.azure.com
Address: 10.1.1.4
psqladmin@psqlvm-inter:~$ nslookup psql-core1-dr.postgres.database.azure.com
Server: 127.0.0.53
Address: 127.0.0.53#53
Non-authoritative answer:
psql-core1-dr.postgres.database.azure.com canonical name = e2f2dd939144.psql-core1.private.postgres.database.azure.com.
Name: e2f2dd939144.psql-core1.private.postgres.database.azure.com
Address: 10.2.1.4

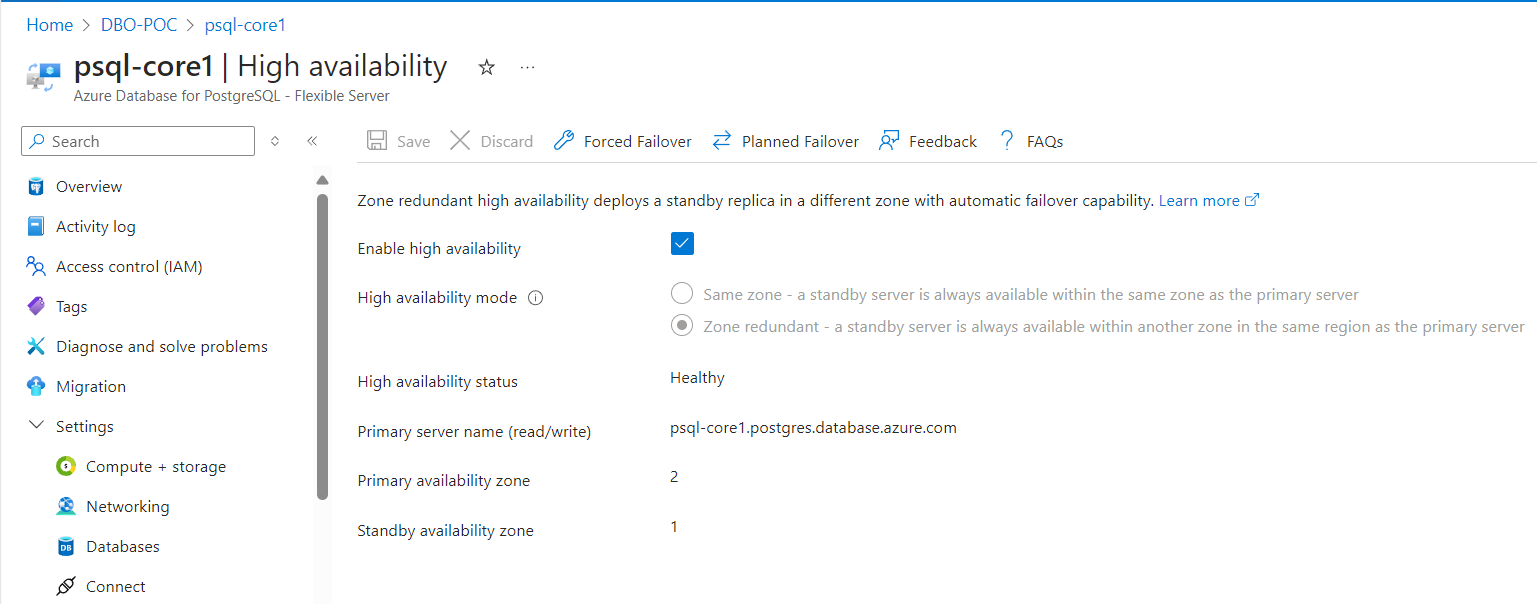

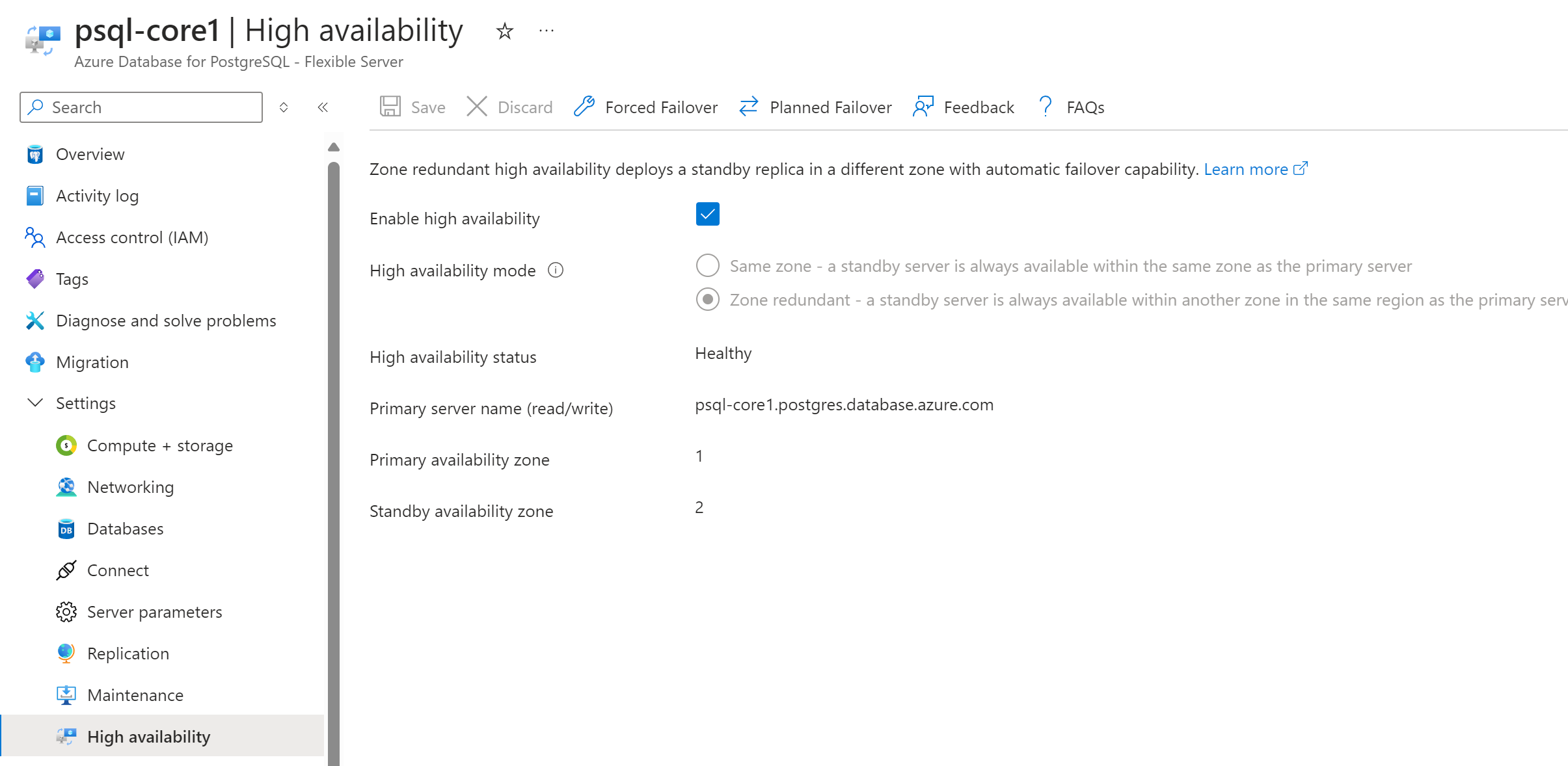

Triggered a planned failover between different AZ.
psqladmin@psqlvm-inter:~$ nslookup psql-core1.postgres.database.azure.com
Server: 127.0.0.53
Address: 127.0.0.53#53
Non-authoritative answer:
psql-core1.postgres.database.azure.com canonical name = a1b9c61e56fd.psql-core1.private.postgres.database.azure.com.
Name: a1b9c61e56fd.psql-core1.private.postgres.database.azure.com
Address: 10.1.1.4
# HA failover
psqladmin@psqlvm-inter:~$ nslookup psql-core1.postgres.database.azure.com
Server: 127.0.0.53
Address: 127.0.0.53#53
Non-authoritative answer:
psql-core1.postgres.database.azure.com canonical name = a1b9c61e56fd.psql-core1.private.postgres.database.azure.com.
Name: a1b9c61e56fd.psql-core1.private.postgres.database.azure.com
Address: 10.1.1.5

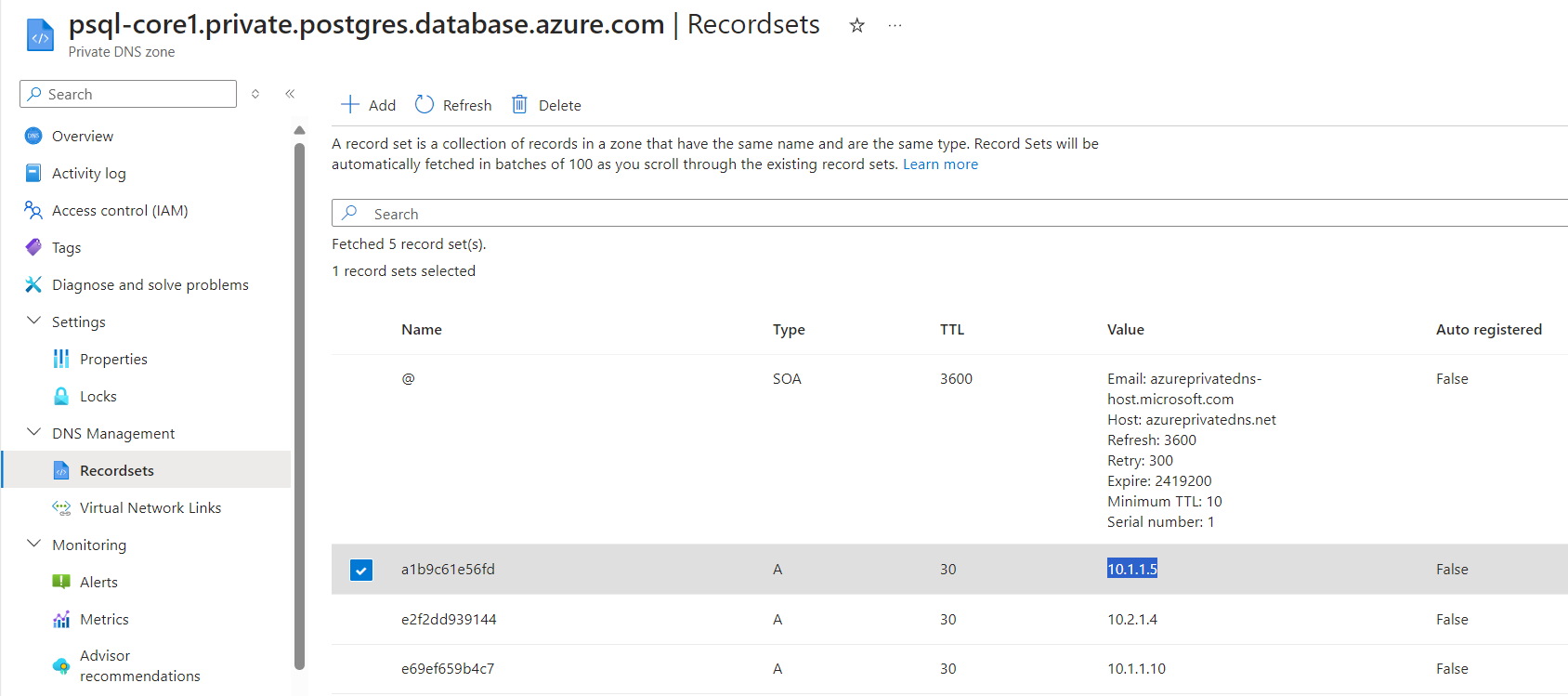

After failover, a1b9c61e56fd’s according IP changed to 10.1.1.5
DR

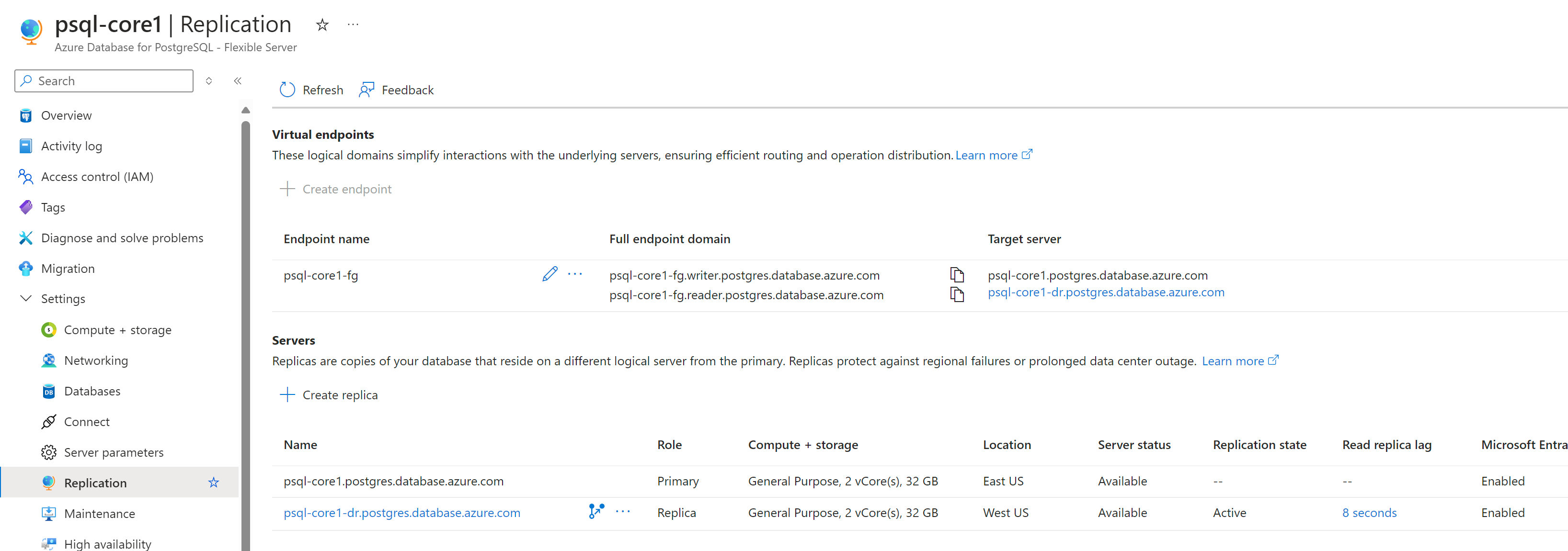

Virtual endpoints These logical domains simplify interactions with the underlying servers, ensuring efficient routing and operation distribution.
- read write -> HA primary server
-
read only -> Read replica server
psqladmin@psqlvm-inter:~$ nslookup psql-core1-fg.writer.postgres.database.azure.com Server: 127.0.0.53 Address: 127.0.0.53#53
Non-authoritative answer: psql-core1-fg.writer.postgres.database.azure.com canonical name = psql-core1.postgres.database.azure.com. psql-core1.postgres.database.azure.com canonical name = a1b9c61e56fd.psql-core1.private.postgres.database.azure.com. Name: a1b9c61e56fd.psql-core1.private.postgres.database.azure.com Address: 10.1.1.4
psqladmin@psqlvm-inter:~$ nslookup psql-core1-fg.reader.postgres.database.azure.com Server: 127.0.0.53 Address: 127.0.0.53#53
Non-authoritative answer: psql-core1-fg.reader.postgres.database.azure.com canonical name = psql-core1-dr.postgres.database.azure.com. psql-core1-dr.postgres.database.azure.com canonical name = e2f2dd939144.psql-core1.private.postgres.database.azure.com. Name: e2f2dd939144.psql-core1.private.postgres.database.azure.com Address: 10.2.1.4

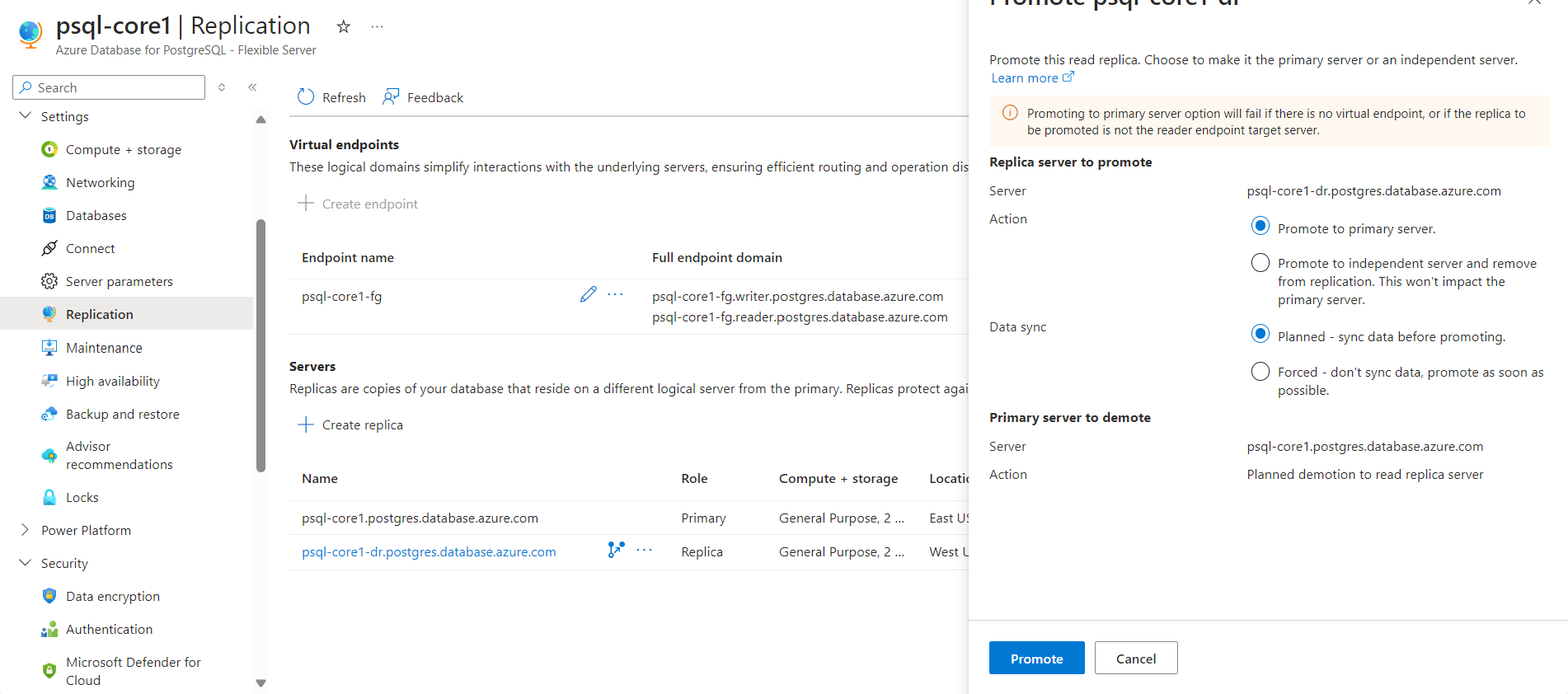

Promote read replica
- Action:
- Promote to primary server
-
Promote to independent server and split replication
- Data sync: Similar like HA failover, there are
- Planned, RPO = 0
- Forced, data loss.
psqladmin@psqlvm-inter:~$ nslookup psql-core1-fg.writer.postgres.database.azure.com
Server: 127.0.0.53
Address: 127.0.0.53#53
Non-authoritative answer:
psql-core1-fg.writer.postgres.database.azure.com canonical name = psql-core1.postgres.database.azure.com.
psql-core1.postgres.database.azure.com canonical name = a1b9c61e56fd.psql-core1.private.postgres.database.azure.com.
Name: a1b9c61e56fd.psql-core1.private.postgres.database.azure.com
Address: 10.1.1.5
# Promote read replica
psqladmin@psqlvm-inter:~$ nslookup psql-core1-fg.writer.postgres.database.azure.com
Server: 127.0.0.53
Address: 127.0.0.53#53
Non-authoritative answer:
psql-core1-fg.writer.postgres.database.azure.com canonical name = psql-core1-dr.postgres.database.azure.com.
psql-core1-dr.postgres.database.azure.com canonical name = e2f2dd939144.psql-core1.private.postgres.database.azure.com.
Name: e2f2dd939144.psql-core1.private.postgres.database.azure.com
Address: 10.2.1.4
Be aware of HA on pre-primary will be removed, as high availability is not supported for replica server.
